Product Introduction

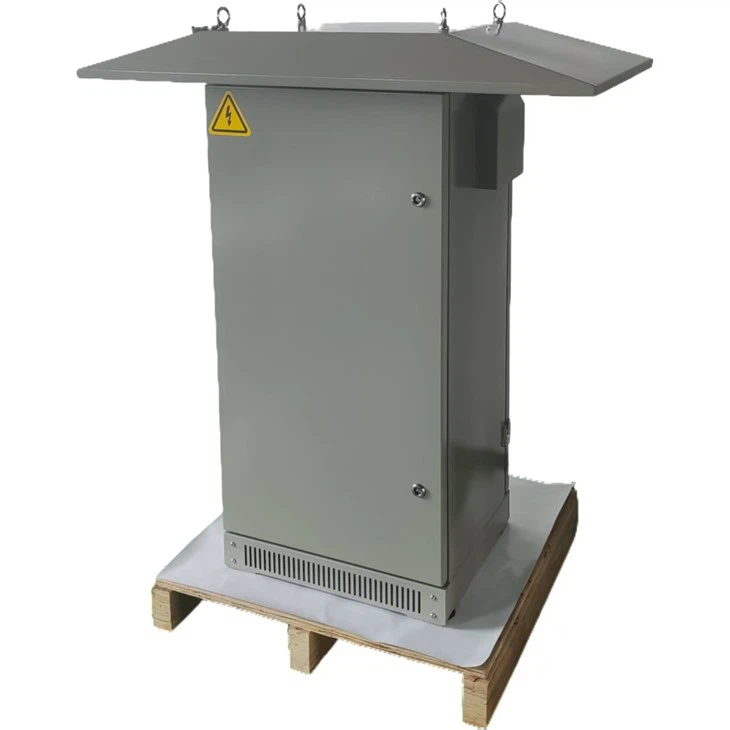

Thyristor controlled transformer rectifier is a rectifier composed of silicon controlled, trigger circuit, PI regulating circuit, main power transformer and other main components.It is a rectifier device that uses silicon controlled for voltage regulation and current stabilization, which is mainly used to convert alternating current into stable direct current,usually simply referred to as (SCR transformer rectifier). This type of power supply can achieve more accurate constant potential control.Generally applied in environments with manned presence.
The main circuit of Thyristor rectifier adopts three-phase bridge or double inverse star belt balanced reactor circuit.Thyristor components use high-power components, energy saving is significant. The main control system adopts large board and high threshold anti-interference, large-scale integrated control board. It has automatic voltage and current stability, and the stability accuracy is better than 1%. Multiphase rectifier is adopted to reduce the output voltage ripple coefficient, especially suitable for hard chrome plating process, good surface finish and uniform coating thickness.
- Product Features:
- It features excellent stability. With advanced circuit design and high-quality electronic components, it has good anti-interference ability and long-term stability, and can operate reliably in harsh industrial environments.
- It is easy to operate and equipped with an intuitive operation interface, making it convenient for users to set parameters, monitor status and diagnose faults. Even non-professionals can quickly get started.
- High-precision constant potential control: It can precisely control the potential of the protected object within the set value range, with control accuracy usually reaching ±10mV or even higher, effectively protecting metal equipment from corrosion.
Product Parameter
|
Application environment |
|
|
Working temperatures |
-25℃~+50℃ |
|
Humidness |
≤90% |
|
Installation inclination |
≤5° |
|
Altitude |
≤2000m |
|
No flammable, explosive or seriously corroded metal gas place. |
|
|
Electrical parameters |
|
|
AC input voltage |
three phase 380V/one phase 230V ,50Hz/60HZ |
|
DC output voltage |
DC 0~100V , Customizable |
|
DC output current |
DC 0~500A , Customizable |
|
Ripple coefficient |
Ripple coefficient ≤5% when at 100% of output potential |
|
Cooling mode |
air - cooled |
|
Protection grade |
IP55 |
|
Protected mode |
Over voltage/over current/over potential/under potential/high temperature alarm |
|
Output voltage/current range |
0~100% continuously adjustable |
product specification
| Type | Size |
| air - cooled | 1080mmX540mmX1180mm |
| oil - cooled | 1000mmX1020mmX1150mm |
*We design and manufacture based on relevant technical performance requirements, offer professional customization services, and can precisely meet the diverse needs of customers. We can produce according to customer requirements. In addition, we provide products with unique and innovative functions to meet the needs of each customer.
